Brand/ Manufacturer:
Bently Nevada -
Dimensions:
24.3 cm x 4.6 cm x 15.5 cm -
Weight:
0.55 kg -
Country Of Origin: :
USA -
Description:
Bently Nevada 3500/94 145988-01 Display Router
Description
The 3500/94 VGA Display uses a standard color VGA monitor with “Touch Screen” technology to display 3500 data. This product has two components, the 3500/94 VGA module and its I/O card, and secondly, the VGA display monitor. The display monitor, with standard cabling, can be mounted up to 8 m (25 ft) from the rack.https://www.axcontroler.com/
The 3500/94 displays all 3500 Machinery Protection System information, including:
• System Event List
• Alarm Event List
• All module and channel data
• 3300 style rack view (API-670)
• Current alarm data (quick view)
• Nine custom display options.
Multiple Rack Feature

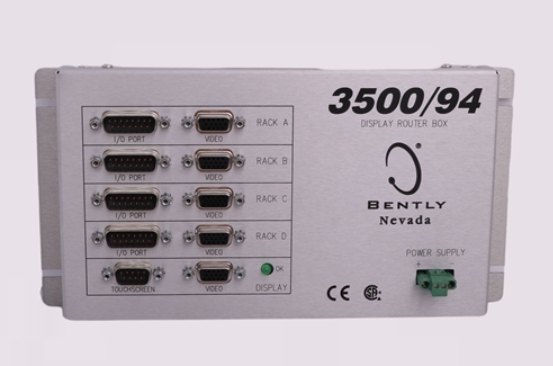

Selecting the 3500/94 Display Router Box provides an additional viewing feature. This feature allows users to view a maximum of four racks with one display. Each rack must be individually viewed, but the rack address and alarm status of each rack is always visible in the upper right corner of the screen. The Display Router Box must be located within 6 m (20 ft) of each 3500 rack.
All display monitor types are “Touch Screen”. Because the “Touch Screen” controllers differ, users must configure each display monitor type using the 3500 Rack Configuration Software
The 3500/94 offers a Display Router Box that allows up to four 3500 racks to drive a single display. The Display Router Box acts as a switch box that allows the operator to switch the display between racks. An important feature of the Display Router Box is its ability to show the alarm and OK status of each connected rack.
3500/94-145988-01 is a Main module developed by Bently Nevada. The VGA Display displays 3500 data on a standard color VGA monitor with Touch Screen technology. This product consists of two parts: the VGA Display Module and its I/O card, and the VGA display monitor. The display monitor can be mounted up to 10 m (33 ft) from the rack using standard cabling.
