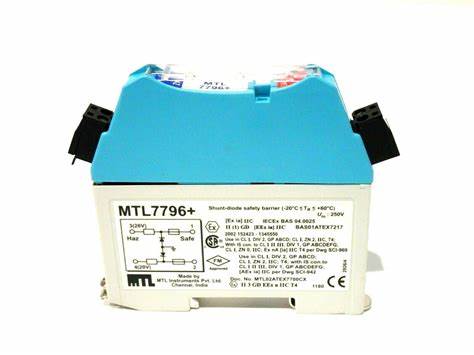

MTL7796+ MTL Zener Safety Barrier 24V DC Power SupplyV 3-wire Transmitters

Brand Name : MTL

Model Number : MTL7796+

Certification : Rohs

Place of Origin : USA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : On request

Packaging Details : Original packing

Part Number : 7796+

Aprroval : ATEX approved

Country Of Origin : USA

Isolation Voltage : 24V

Temperature Range : -20°C to +60°C

Maximum Output Voltage : 24V from 180Ω

Contact Now

MTL7796+| Instruments | Proximity Detector Interface

MTL7796+ MTL Zener Safety Barrier 24V DC Power SupplyV 3-wire Transmitters

3-wire transmitters used in conjunction with vibration monitoring equipment are always powered from a 24V DC supply, so the positive polarity MTL Zener safety barrier MTL7796+ is recommended.

All MTL7700 series Zener barriers are designed according to the same design principles. Each channel consists of a secondary pulse detecting Zener or forward connecting diode and a “reliable” terminating resistor. In the event of an electrical fault in the safety zone, the diode limits the voltage that can reach the hazardous area, while the resistor has a current limiting effect. A fuse protects the diode, and a two-stage voltage limiting function ensures continuous protection in the event of a failure in either stage. No active output current limiting circuitry is used. All models are certified “ia” - for all zones and “IIC” - for all explosive atmospheres (except MTL7707P+ and MTL7729P+, “ia” “IIB”).

Commonly Used MTL7700 Summary Table

Type Application Main safety barriers

Analog input (low level) RTD temperature detector, thermocouple, AC sensor

MTL7756ac

MTL7755ac

MTL7760ac

Analog input (high level) Transmitter, 2-wire, 4/20mA

MTL7706+

MTL7787+

MTL7787P+

MTL7788+

Analog Output

Controller output, single wire to ground

Controller output, neither wire grounded

MTL7728+

MTL7787+

MTL7787P+

Digital (switch) input Switch/proximity switch

MTL7787+

MTL7787P+

MTL7789+

MTL7741

MTL7742

MTL7743

MTL7744

MTL7745

Digital (Switching) Outputs

Solenoids, Alarms, Light Emitting Diodes

MTL7728+

MTL7707+

MTL7728P+

MTL7729P+

MTL7787+

MTL7787P+

Positive DC Systems

Low Voltage to 12V DC Systems

18V DC Systems

MTL7764+

MTL7767+

MTL7722+

AC and DC Systems High Voltage AC and DC Systems

MTL7765ac

MTL7778ac

Negative/Floating Power Supply Digital (Switching) Outputs MTL7728-

Spare Cord and Shield - MTL7799

Bus Power Usage - MTL7799

MTL7706

MTL7707+

MTL7707P+

MTL7741

MTL7742

MTL7743

MTL7744

MTL7745

MTL7787+

MTL7787P+

MTL7788+

MTL7789+

Manufacturer	MTL Instruments
Product type	Vibration Transducer Interface
Product no	MTL7728+
